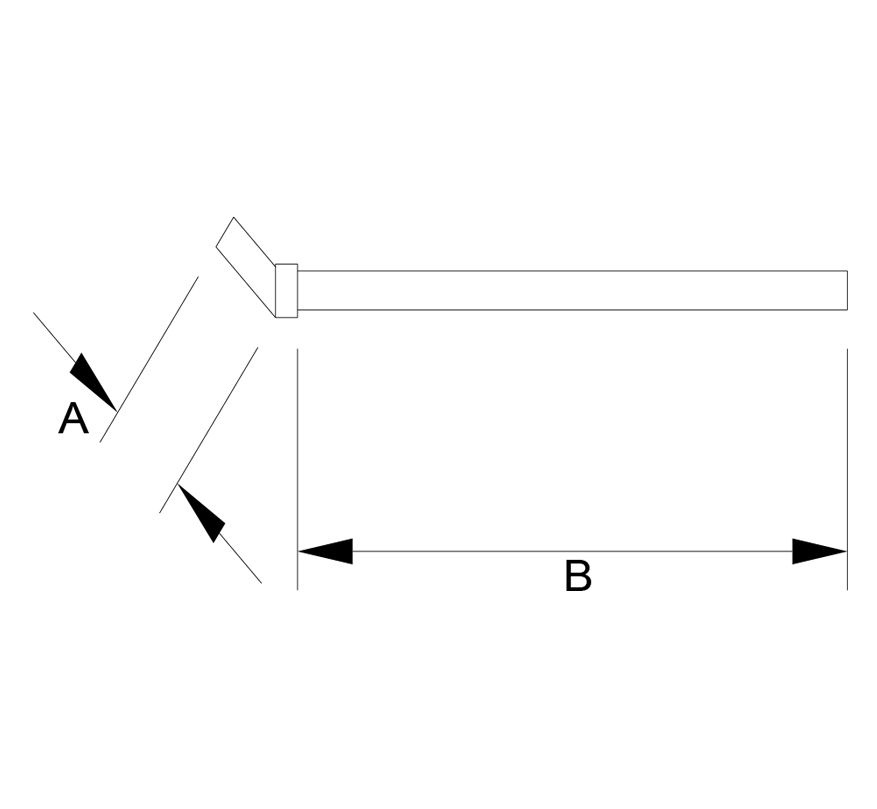

Corner Bead
An important part of reinforcing an exterior stucco or plaster corner is using a vinyl Corner Bead. Kong Foh & Co. offers a comprehensive range of Corner Beads that are durable, rust resistant and provide excellent edge alignment. Effective bonding of our products and the base surface is achieved with our designed striation and perforation along the flange.
Item
A
B
C
KF 2020 1W
1 mm
20 mm
20 mm
KF 2020 1W
2 mm
20 mm
20 mm
KF 2020 3W
3 mm
20 mm
20 mm
KF 2020 4W
4 mm
20 mm
20 mm
Item
A
B
C
KF TP 3W
3 mm
18 mm
28 mm
KF TP 4W
4 mm
15 mm
18 mm
KF TP 5W
5 mm
20 mm
20 mm

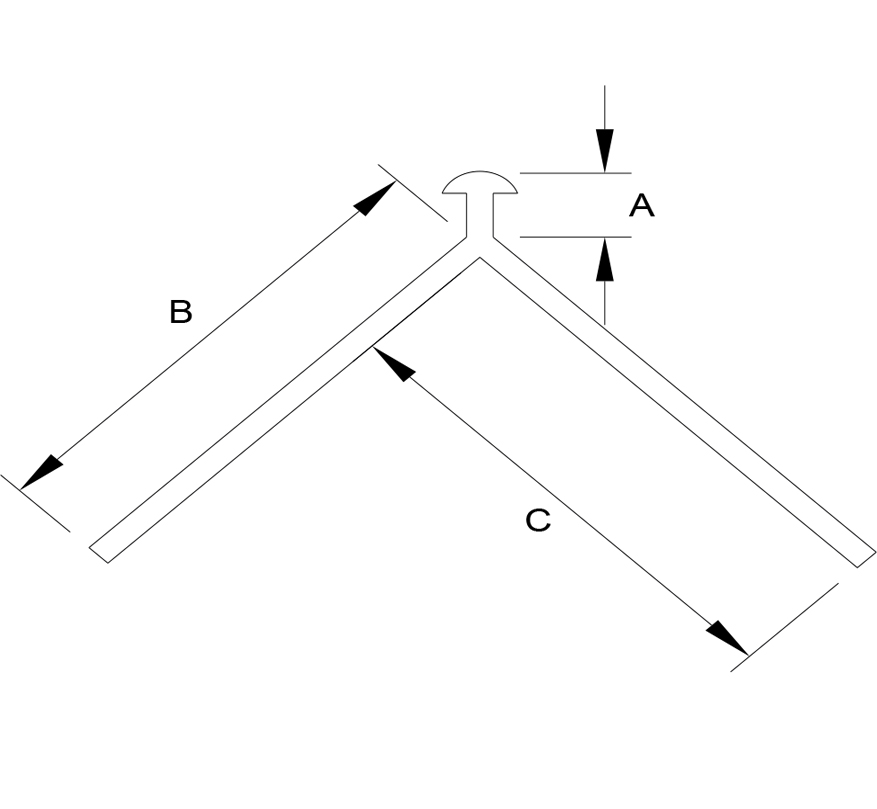

Item
A
B
C

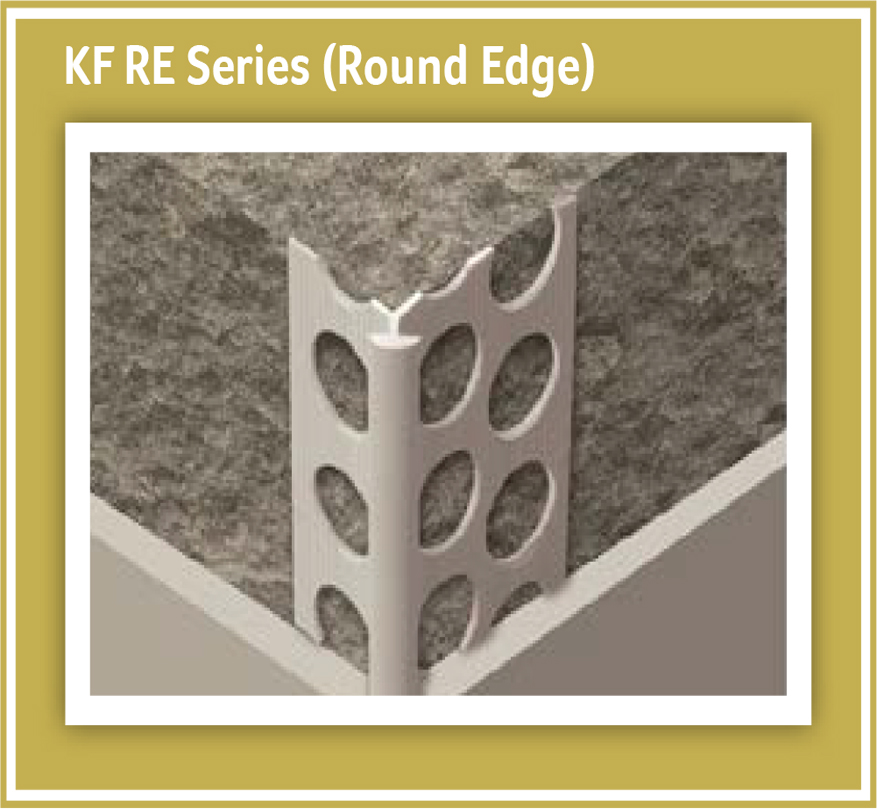

KF RE 4W
4 mm
20 mm
20 mm
KF RE 5W
5 mm
18 mm
27 mm
KF RE 10W
10 mm
18 mm
18 mm
Item
A
B

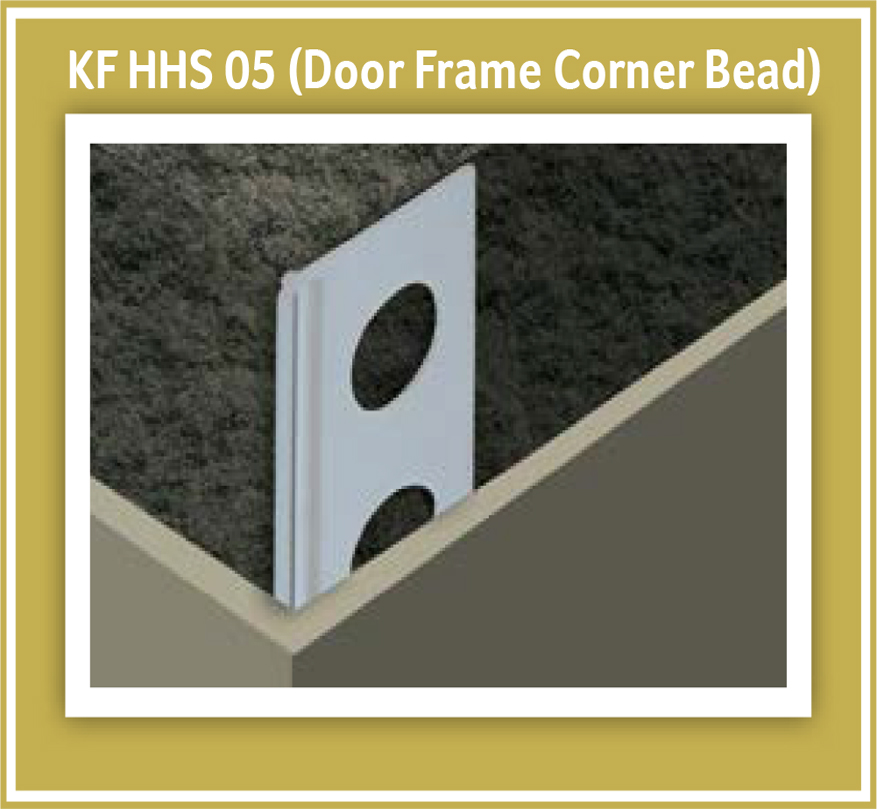

KF HHS 05
2 mm
20 mm

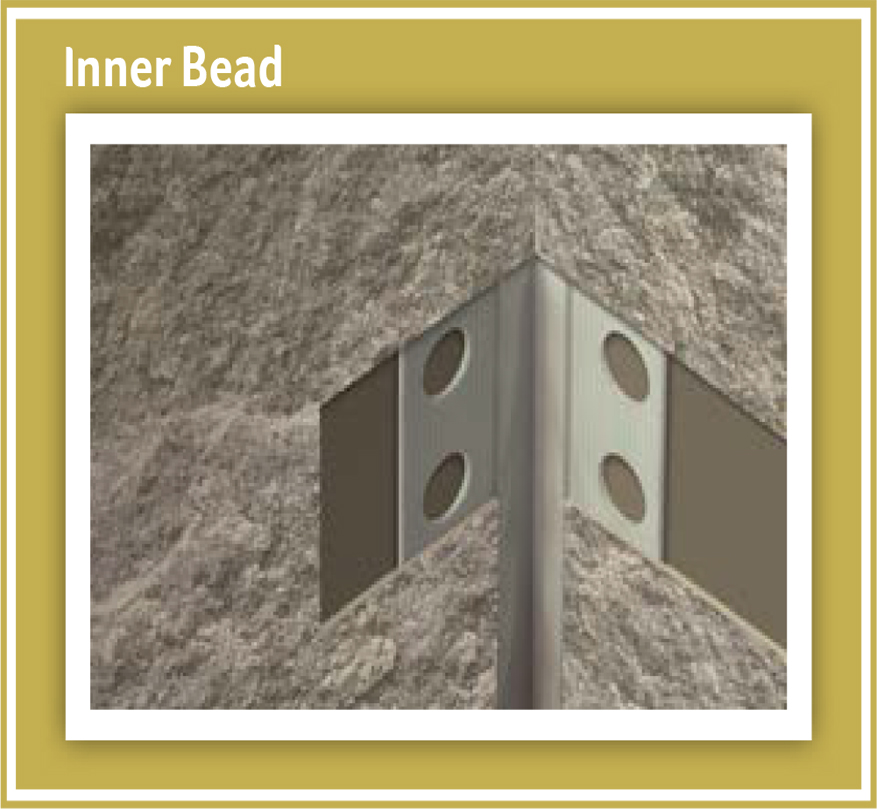

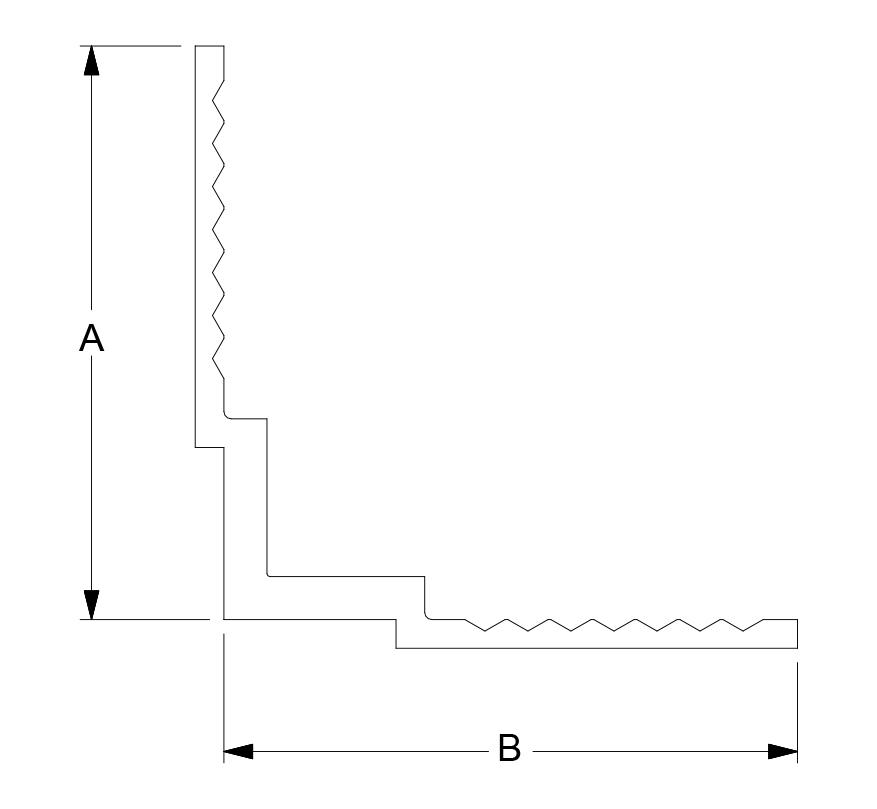

Inner Bead
One of the most difficult aspects of wall plastering alignment is achieving the perfect 90° internal corner. For this reason, we offer an Inner Bead as a solution to provide a perfect 90° straight and sharp internal corner regardless to where the walls meet at the corner. With Kong Foh & Co.’s Inner Bead, wall plastering can be more efficient, thus improving construction productivity.
Item
A
B
KF 1919 IB
19 mm
19 mm

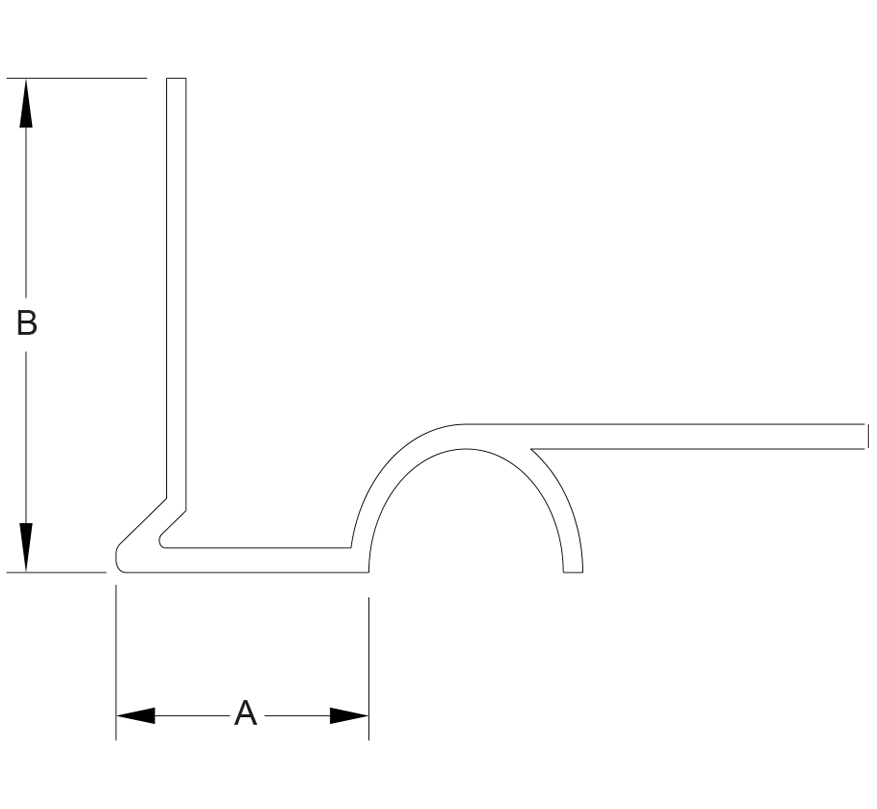

Drip Line
Kong Foh & Co. has combined the function of a Corner Bead and a Drip Line into a single product. With the application of Kong Foh & Co. Drip Line, both edge alignment and groove for drip line can be achieved in a single plastering procedure.
Item
A
B
KF 1310 DL
13 mm
20 mm
KF 2010 DL
20 mm
20 mm

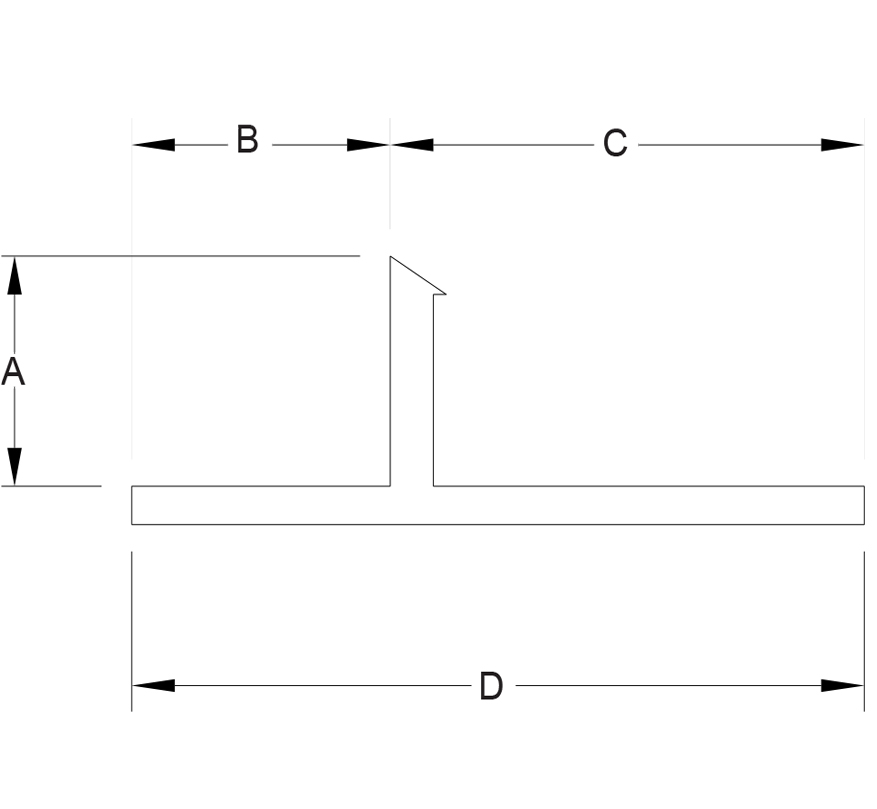

Plaster Stop
Kong Foh & Co. Plaster Stop’s primary function is to terminate plaster and stucco works. It can be used vertically or horizontally, and was designed to provide better alignment to the intersections of dissimilar materials during installation.
Item
A
B
C
D
KF 6 PS
6 mm
6 mm
10 mm
16 mm
KF 8 PS
8 mm
8 mm
11 mm
19 mm
KF 10 PS
10 mm
10 mm
12 mm
22 mm
KF 12 PS
12 mm
12 mm
18 mm
30 mm
KF 15 PS
15 mm
15 mm
20 mm
35 mm

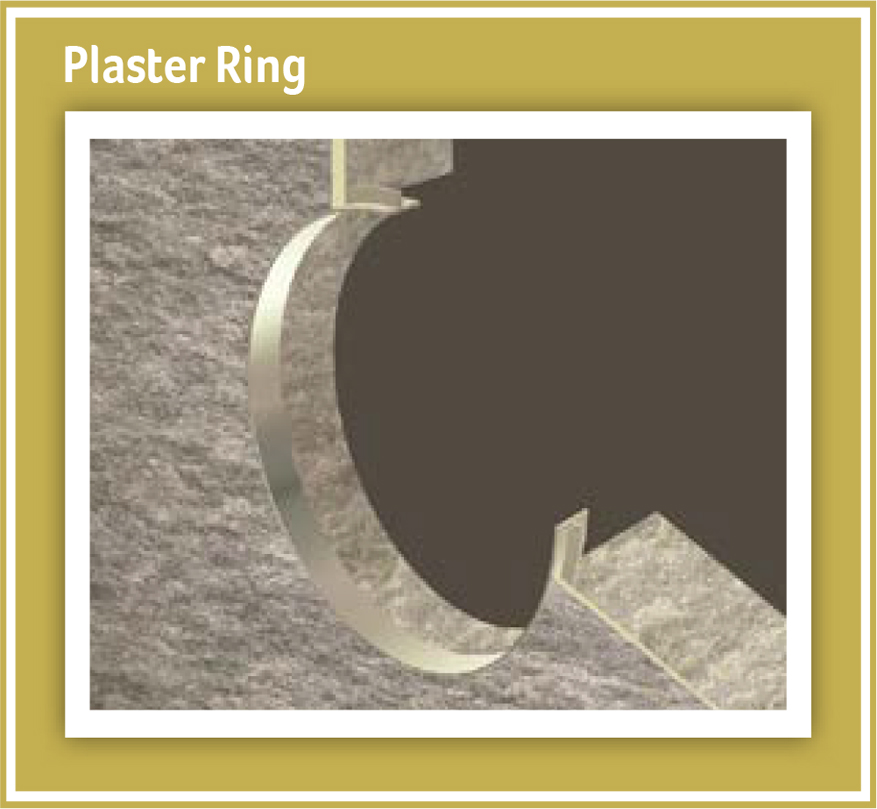

Plaster Ring
Plaster Ring is used as a tool to form a circular shape and to achieve a good finish during plastering of the household shelter ventilation sleeve. The plaster adaptor is designed according to HDB’s specification.
Item
Diameter
Plaster Ring
280/300 mm

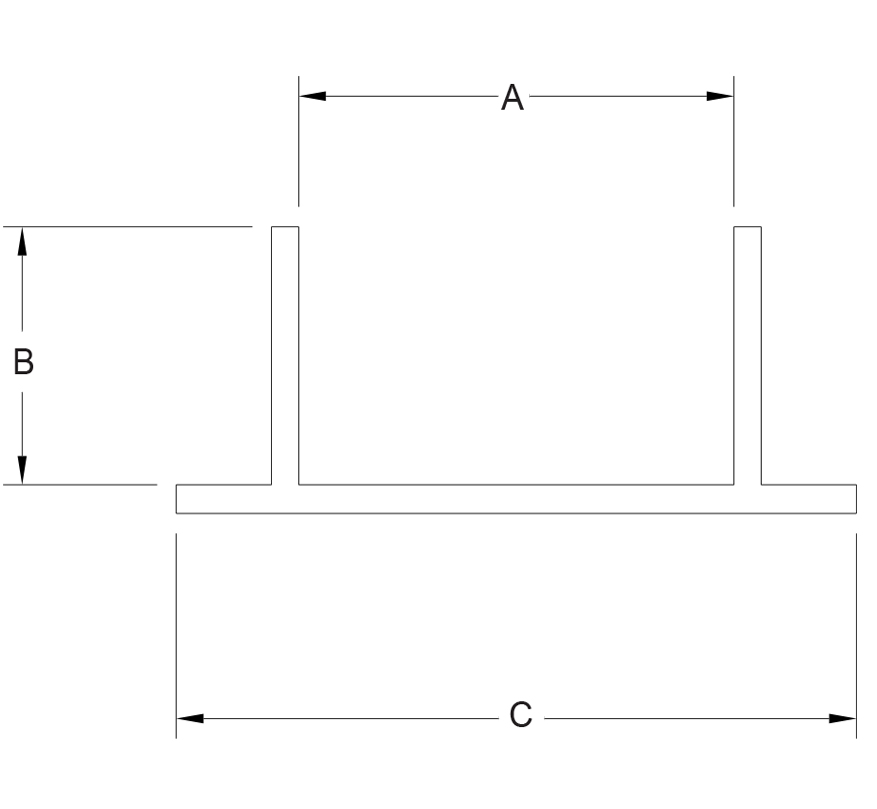

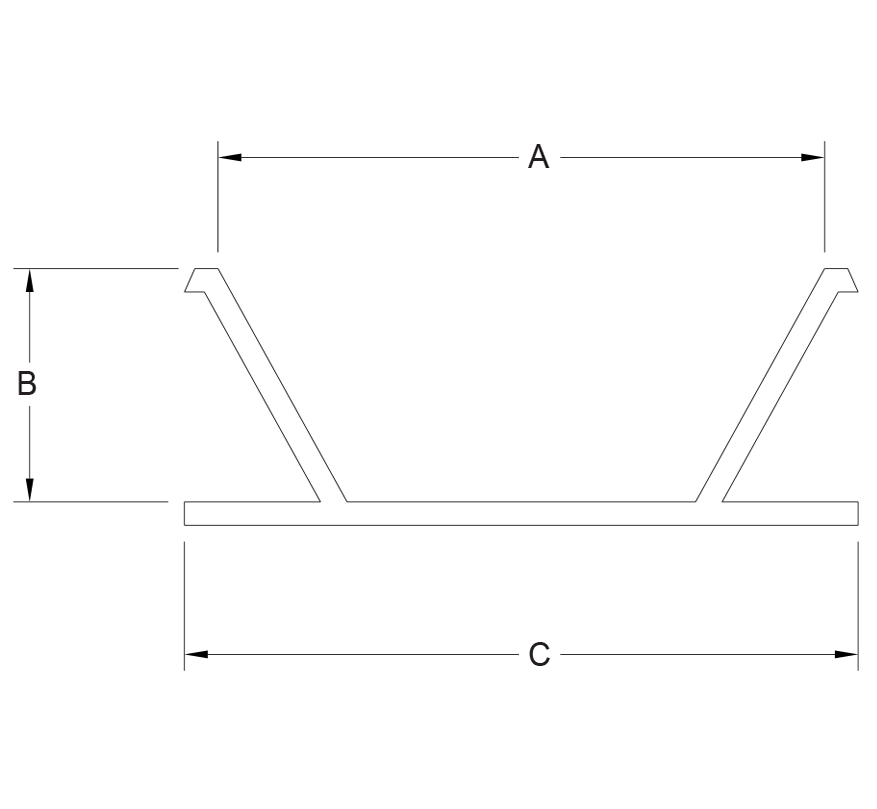

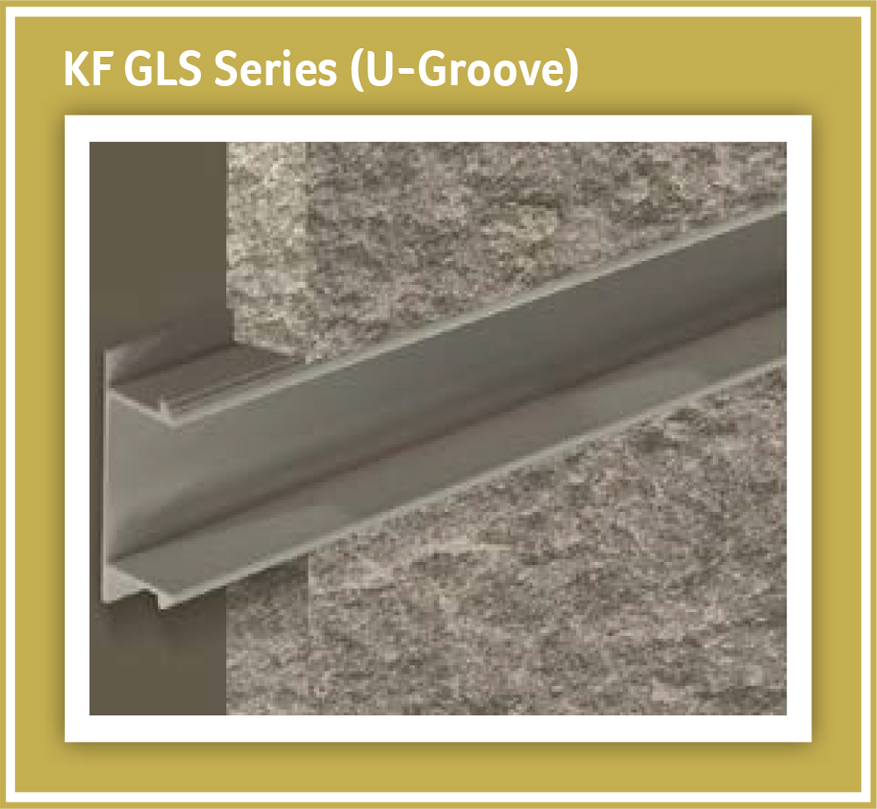

Groove Joint
Groove Joints are usually used in the external wall lining to create a pleasing break on a stucco wall surface. Aside from aesthetic enhancement, it also provide improved bonding strength between stucco and its joints, making stucco embedment more efficient. Kong Foh & Co. offer chamfered and vaulted Groove Joints to meet different needs.
Item
A
B
C
KF GLS 0905
9 mm
5 mm
13 mm
KF GLS 1010
10 mm
10 mm
17 mm
KF GLS 1605
16 mm
5 mm
20 mm
KF GLS 1609
16 mm
9 mm
27 mm
KF GLS 2010
20 mm
10 mm
30 mm
KF GLS 2510
25 mm
10 mm
34 mm
KF GLS 5010
50 mm
10 mm
60 mm

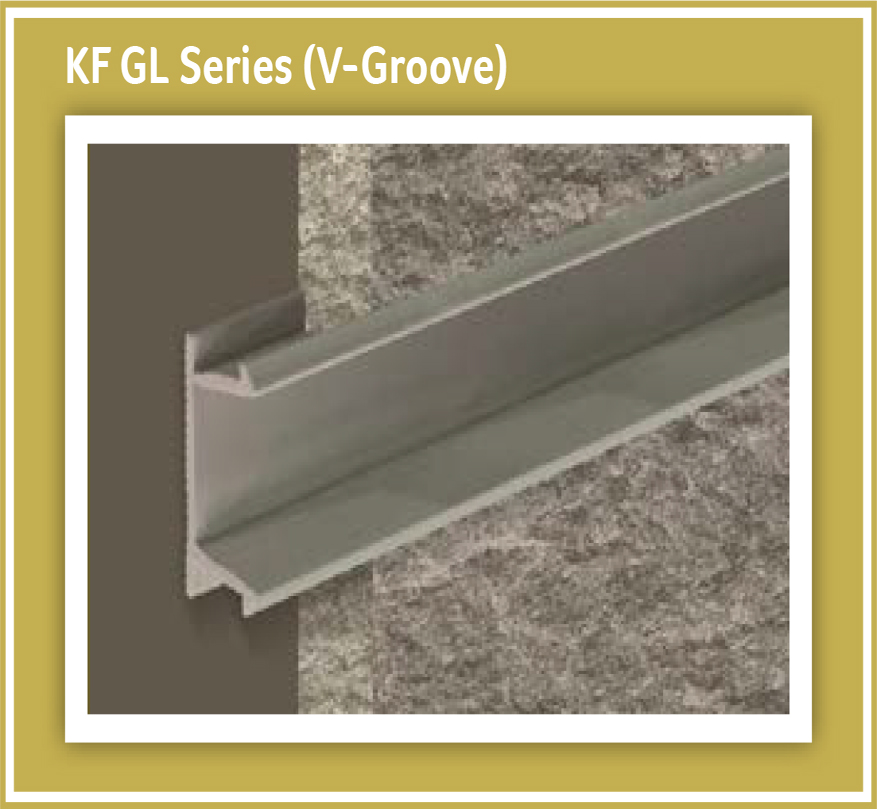

Item
A
B
C
KF GL 1006
10 mm
6 mm
15 mm
KF GL 1510
15 mm
10 mm
20 mm
KF GL 2010
20 mm
10 mm
25 mm
KF GL 3010
30 mm
10 mm
35 mm
